1992-1997 Lincoln Town car Complete Air Suspension Kit 3/8″ Valves Full FBSS

## Product Summary

| Field | Details |
|—|—|
| Brand | Newmatics |
| Part Number | LIN92-97-TOWN-ANA12VFBSS-KIT |
| Product | Complete Air Suspension Kit |
| Vehicle | Lincoln Town Car |
| Fitment Years | 1992–1997 |
| System | Full Front, Rear & Side-to-Side (FBSS) |
| Air Management | 3/8″ system |
| Compressors | Viair 444C Dual Compressors |
| Air Tank | 5-gallon black aluminum |
| Valves | 8 × SMC 3/8″ NPT 12V valves |
| Control | AVS 9-switch handheld controller |
| Front Bags | Single-bellow, 2,600 lb |
| Rear Bags | Double-bellow, 2,500 lb |
| Warranty | 1 Year |
| Condition | New |
| Country of Origin | United States |
| Performance Part | Yes |
| Adjustable | Yes |

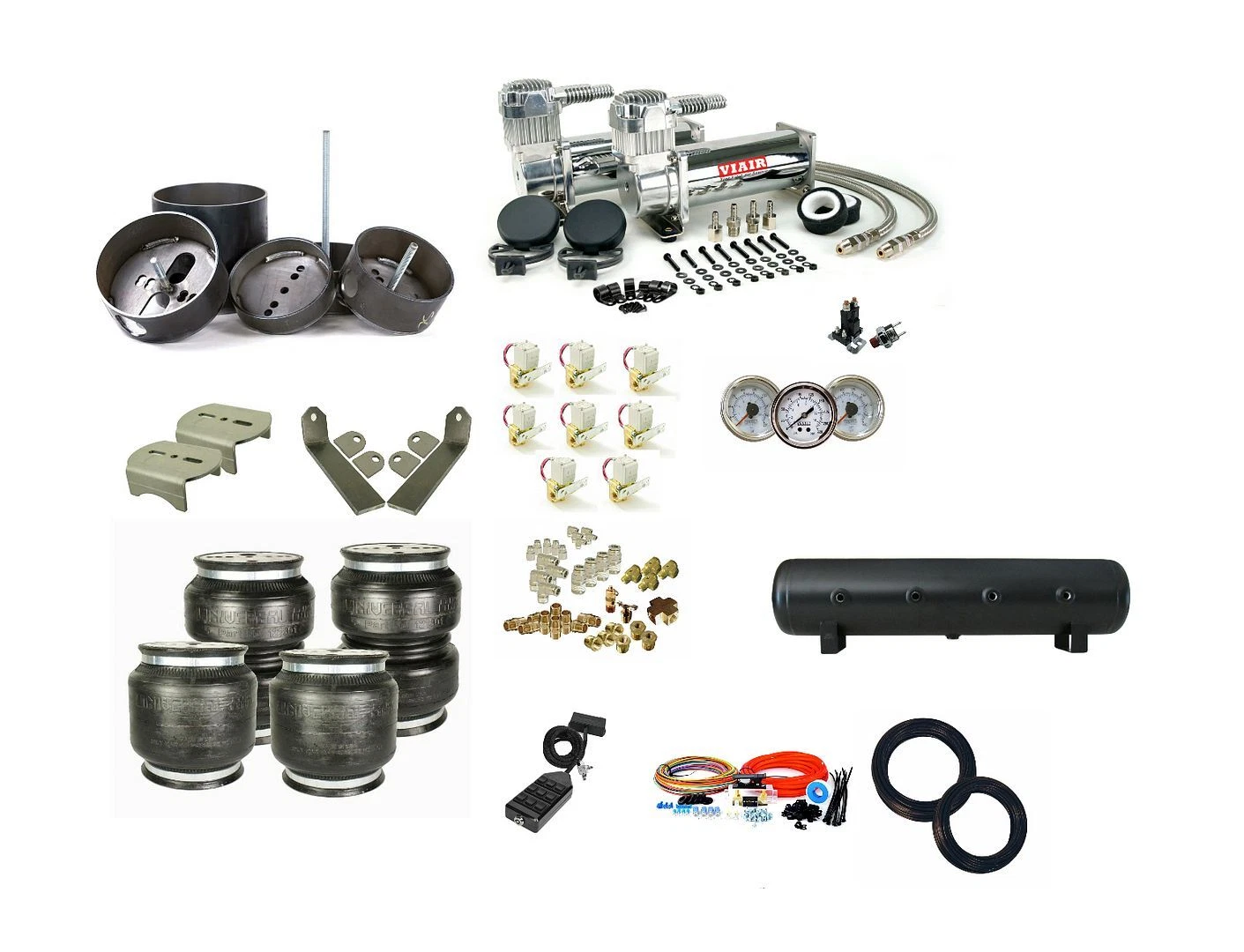

## Kit Contents

| Component | Quantity / Details |
|—|—|

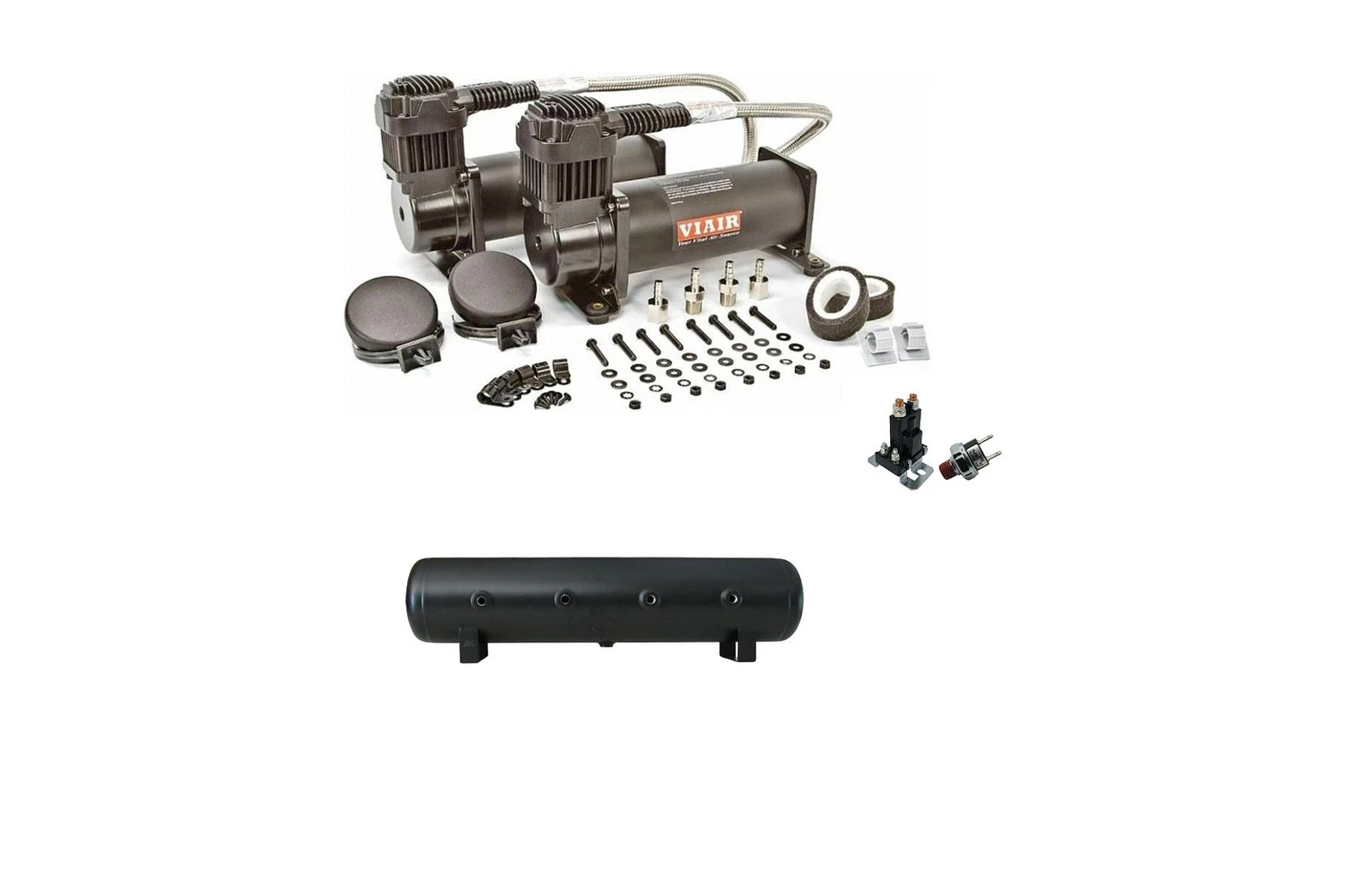

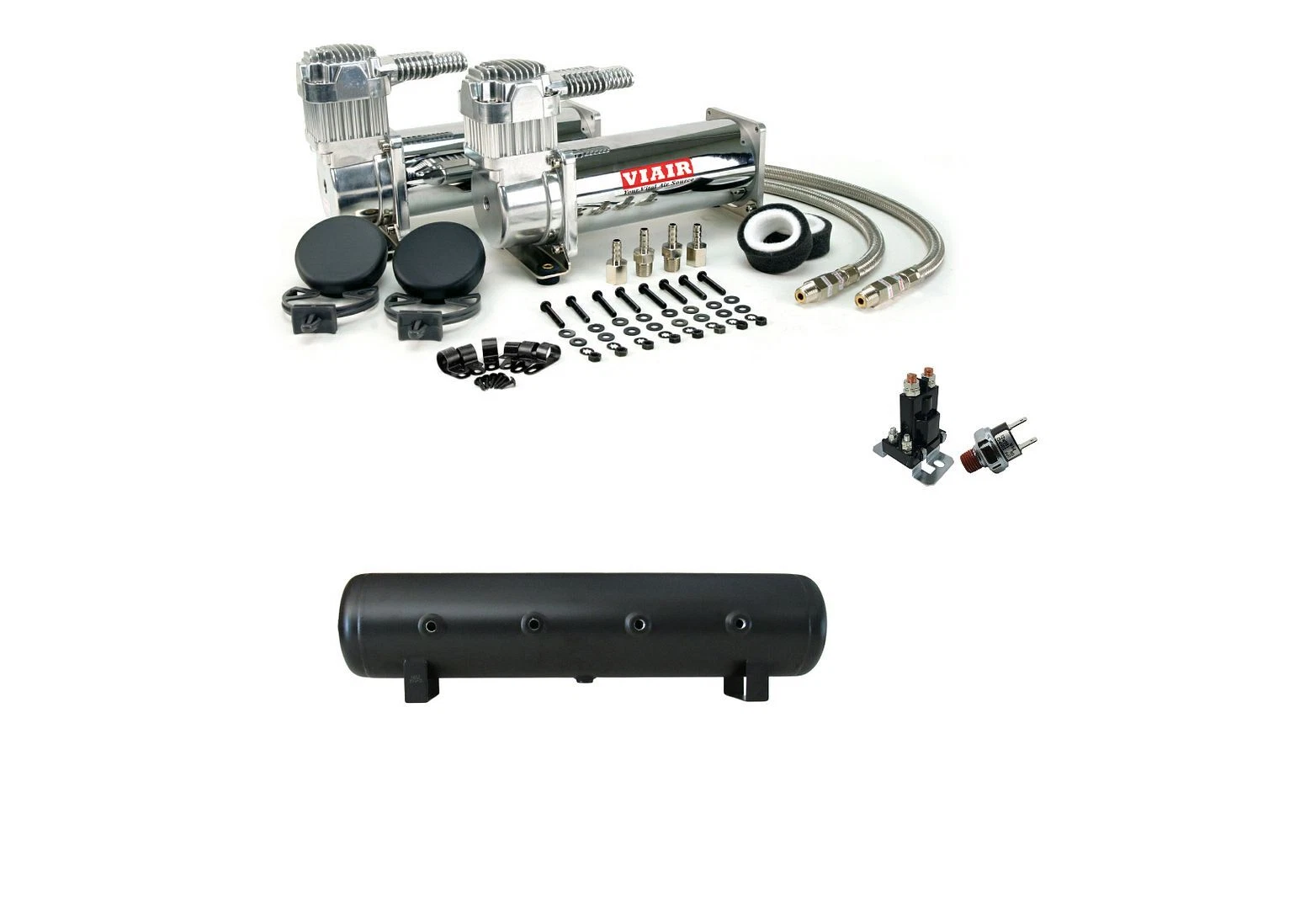

| Viair 444C compressors | 2 |

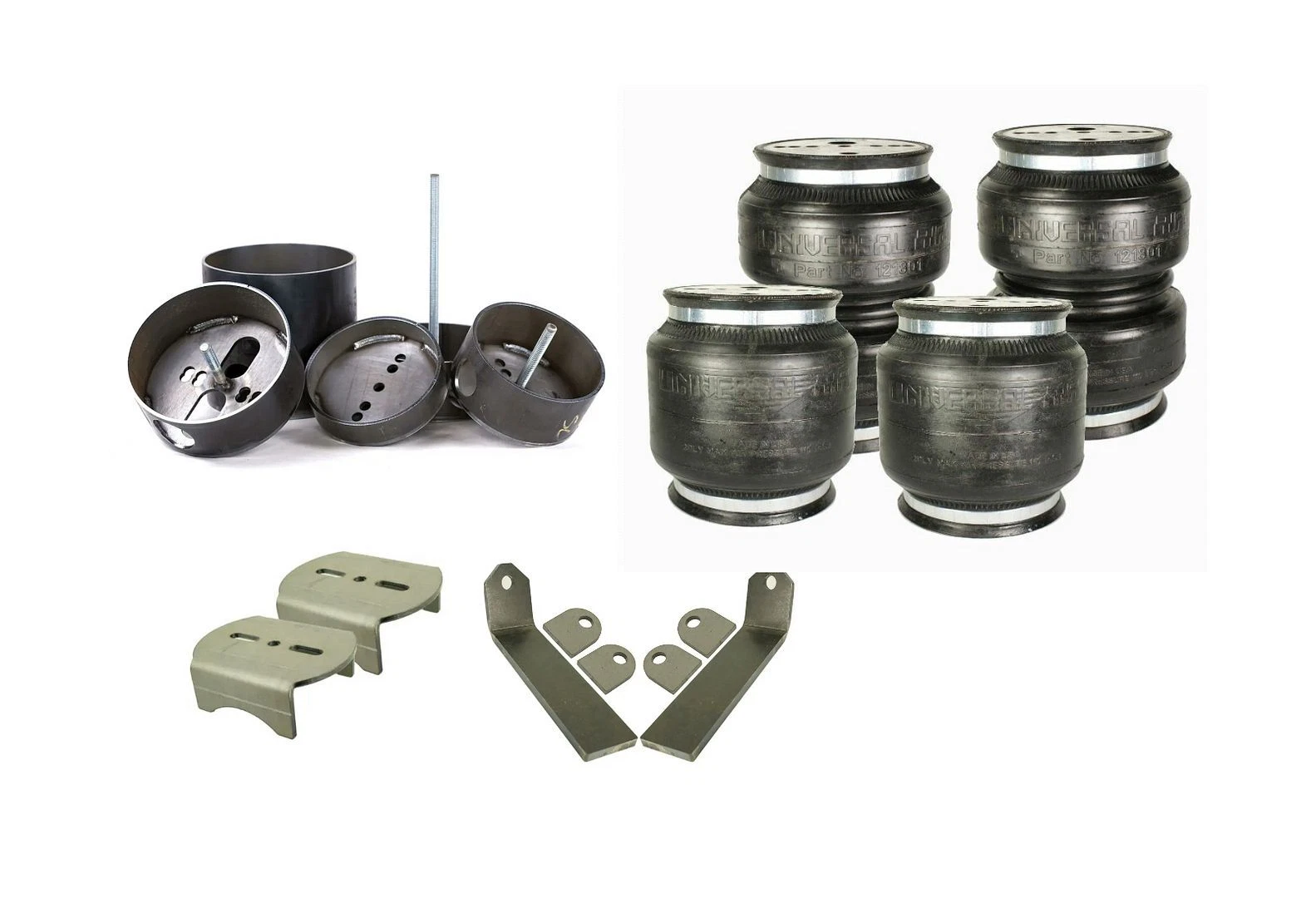

| Front air bags | 2 × single-bellow, 2,600 lb |
| Rear air bags | 2 × double-bellow, 2,500 lb |

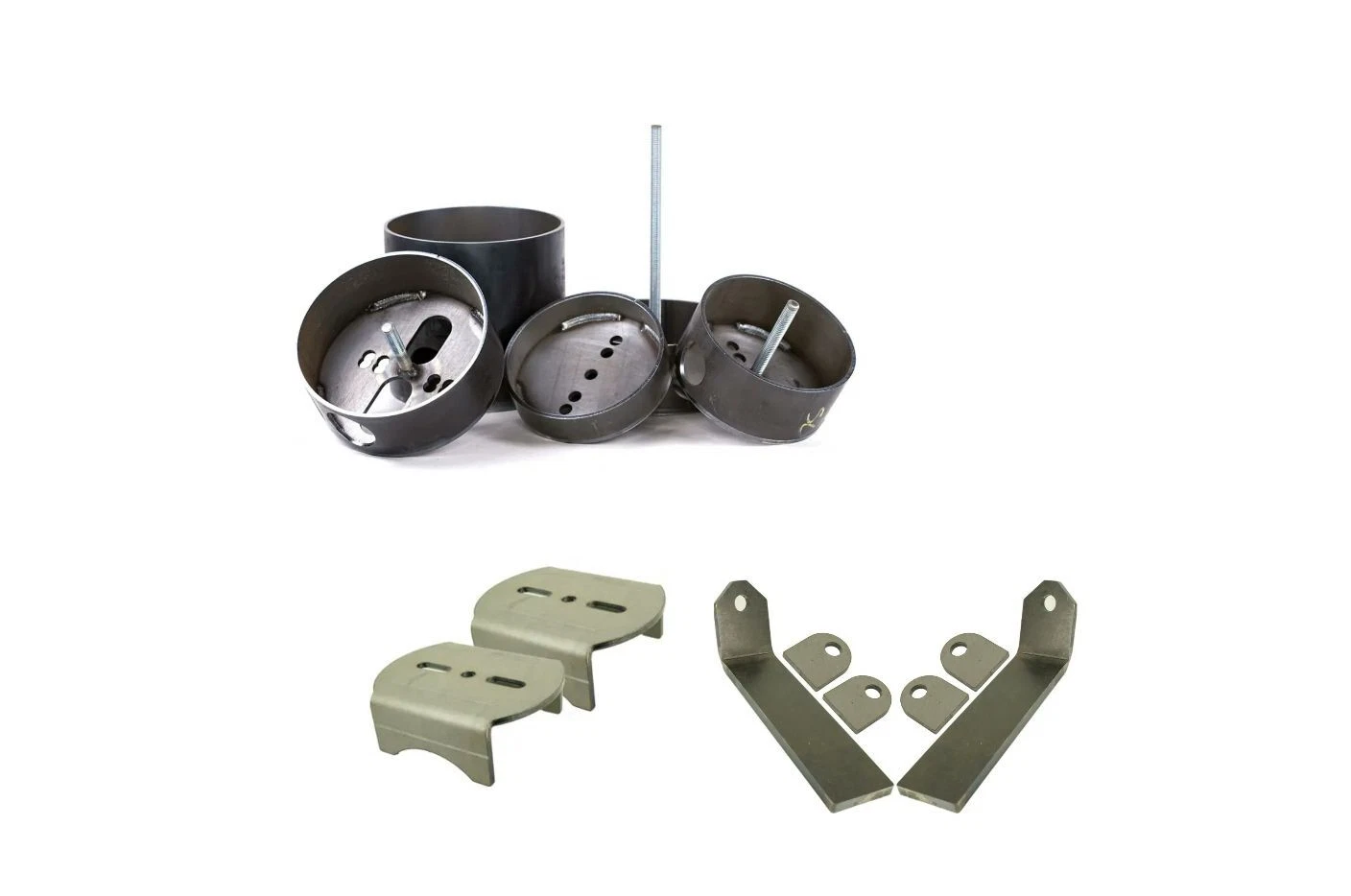

| Front bag brackets | Pair |
| Rear bag brackets | Pair |

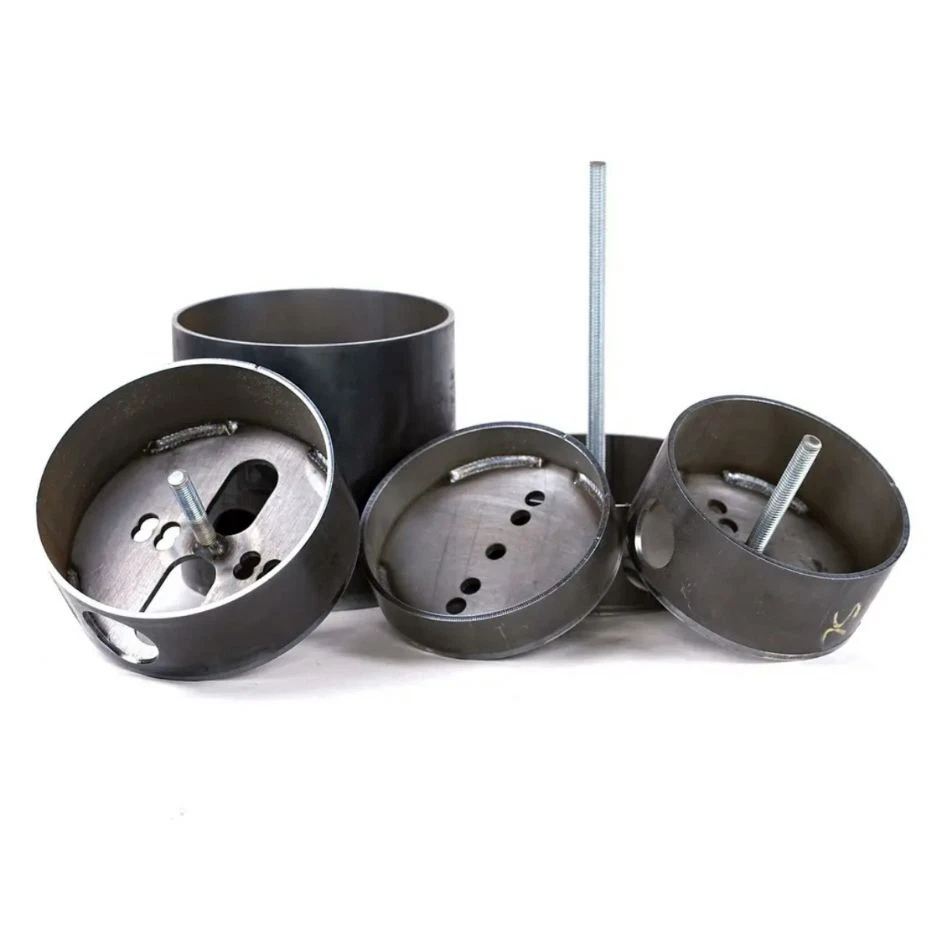

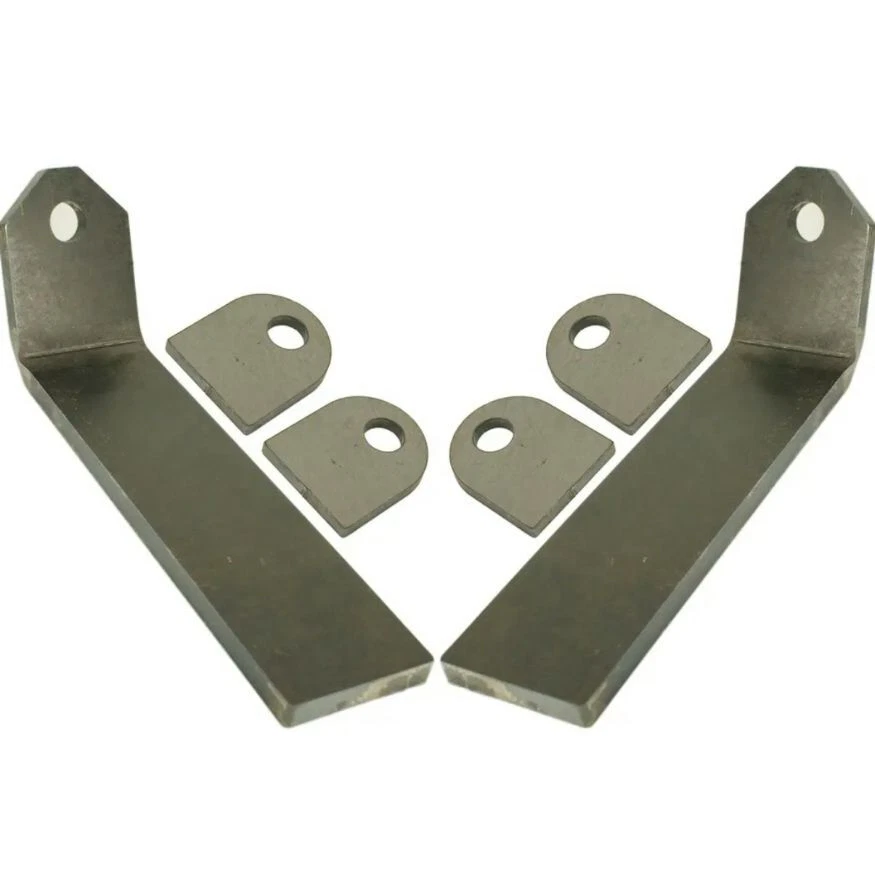

| Front shock relocators | Included |

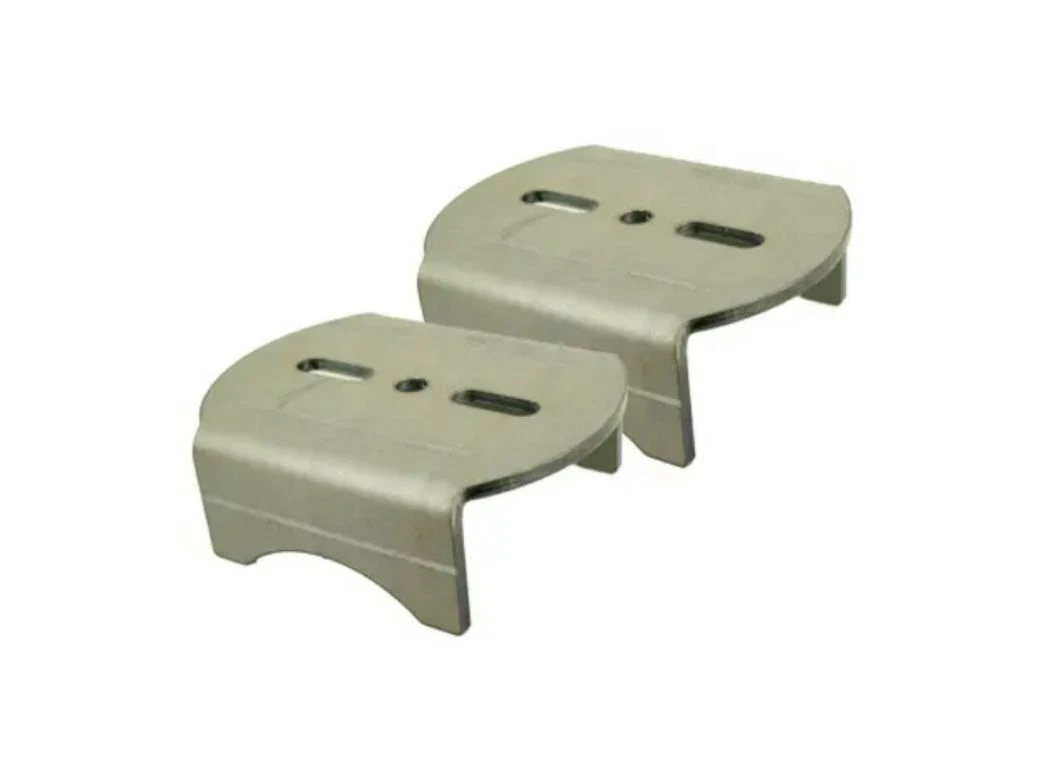

| Rear lower axle pads | Pair, weld-on |

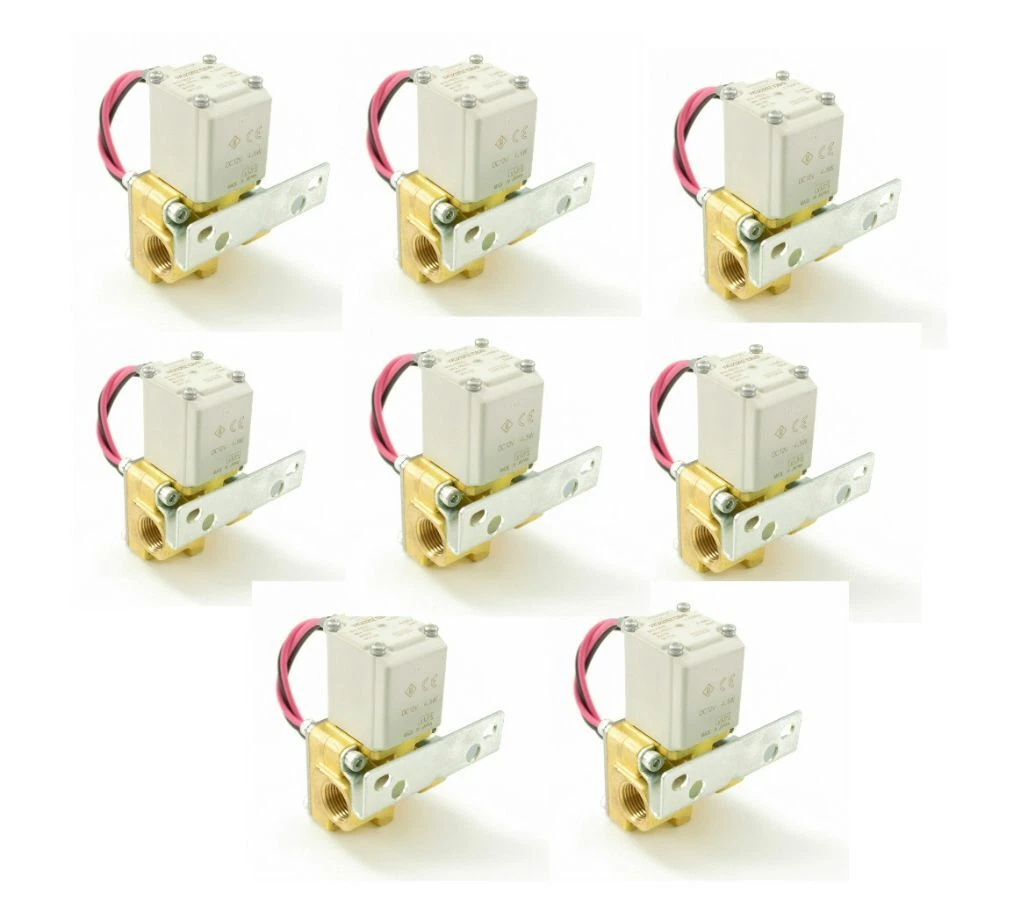

| SMC 12V valves | 8 × 3/8″ NPT |
| Air tank | 5-gallon, 7-port aluminum |

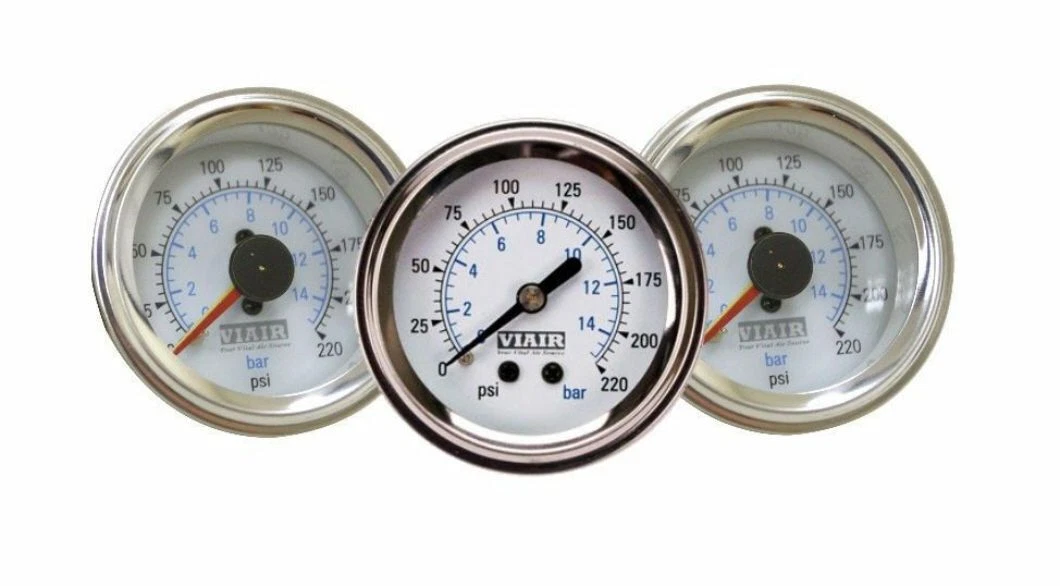

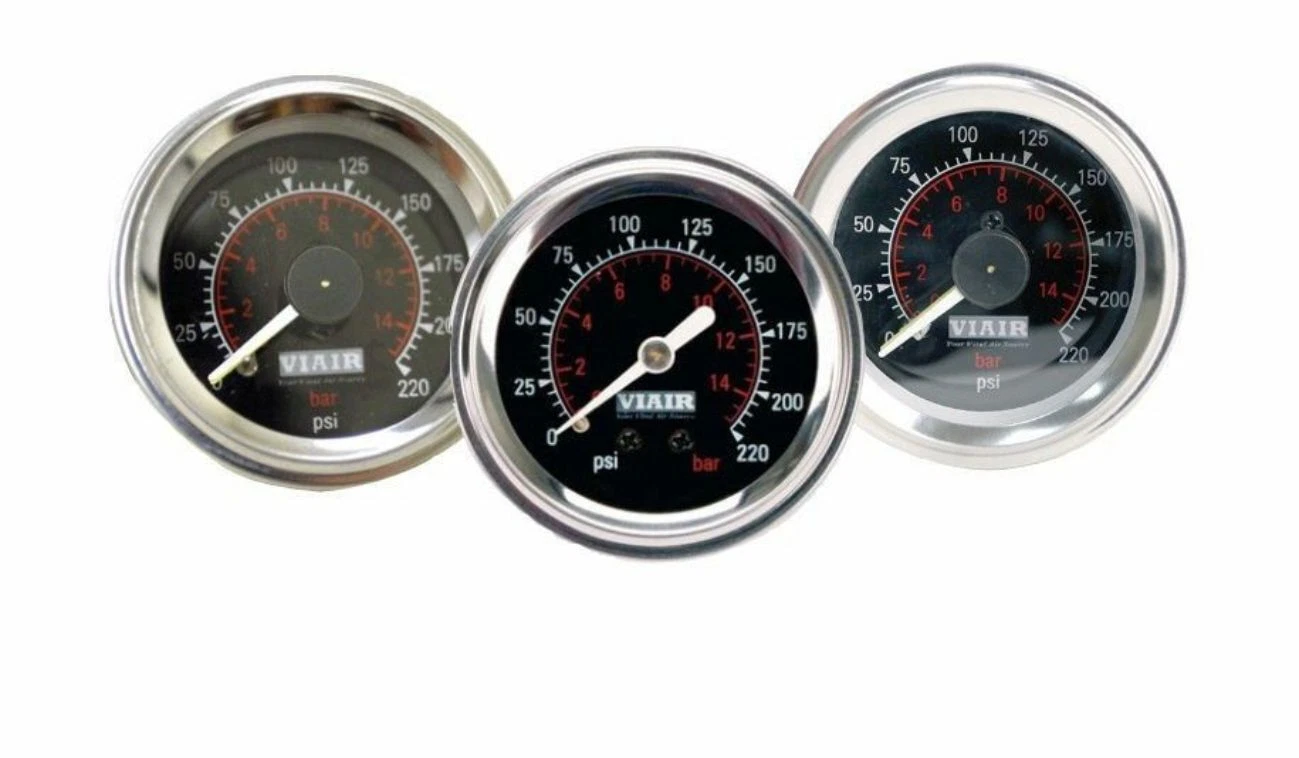

| Air gauges | 2 dual-needle + 1 single-needle |

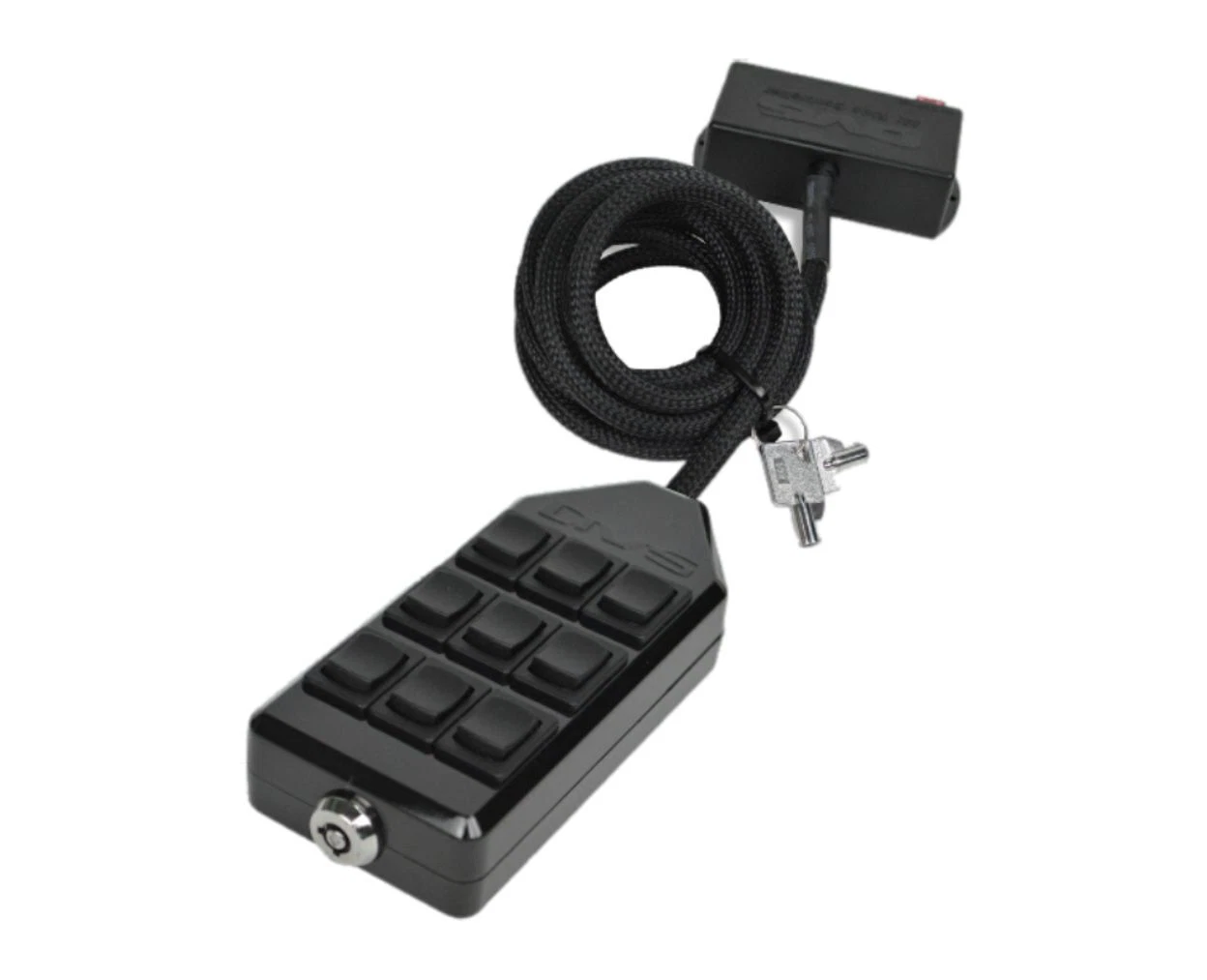

| AVS controller | 9-switch handheld |

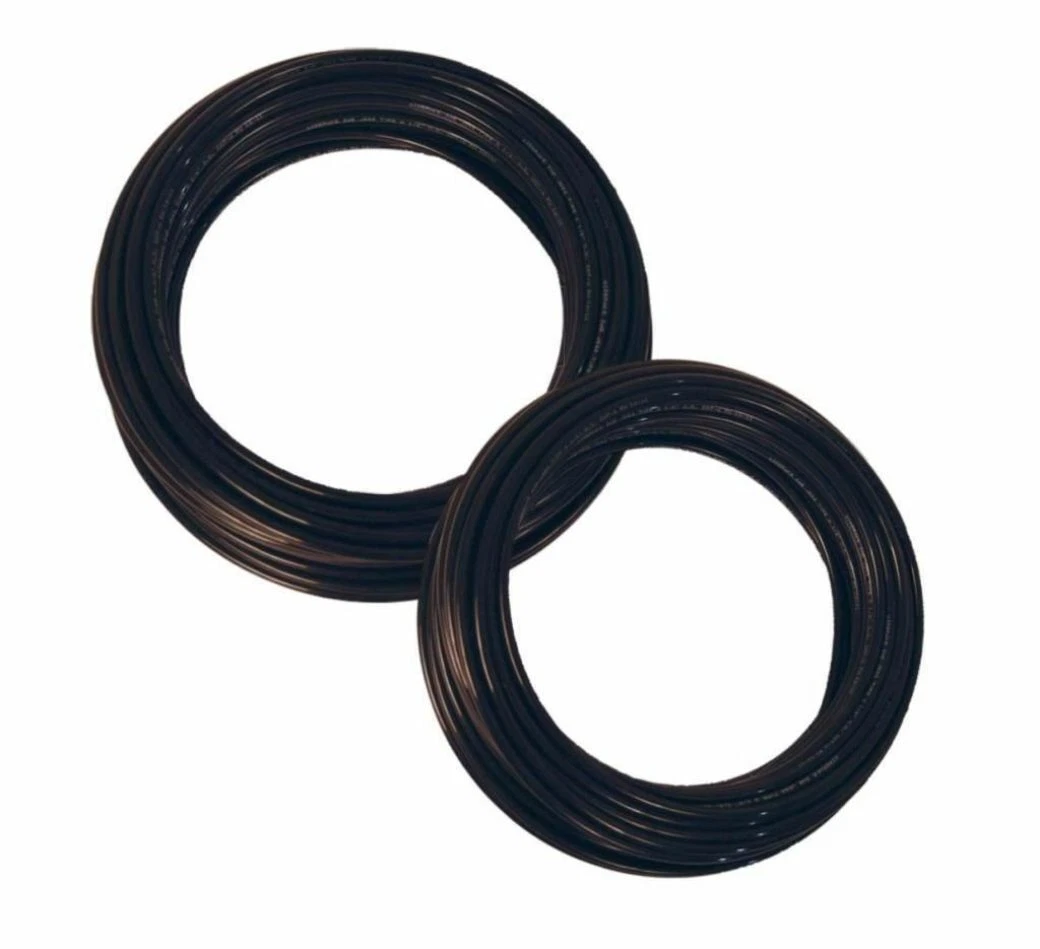

| DOT airline | 60 ft × 3/8″ OD |
| DOT airline | 60 ft × 1/8″ OD |
| Pressure switch | 165/200 PSI |
| Relay | Heavy-duty 80A |

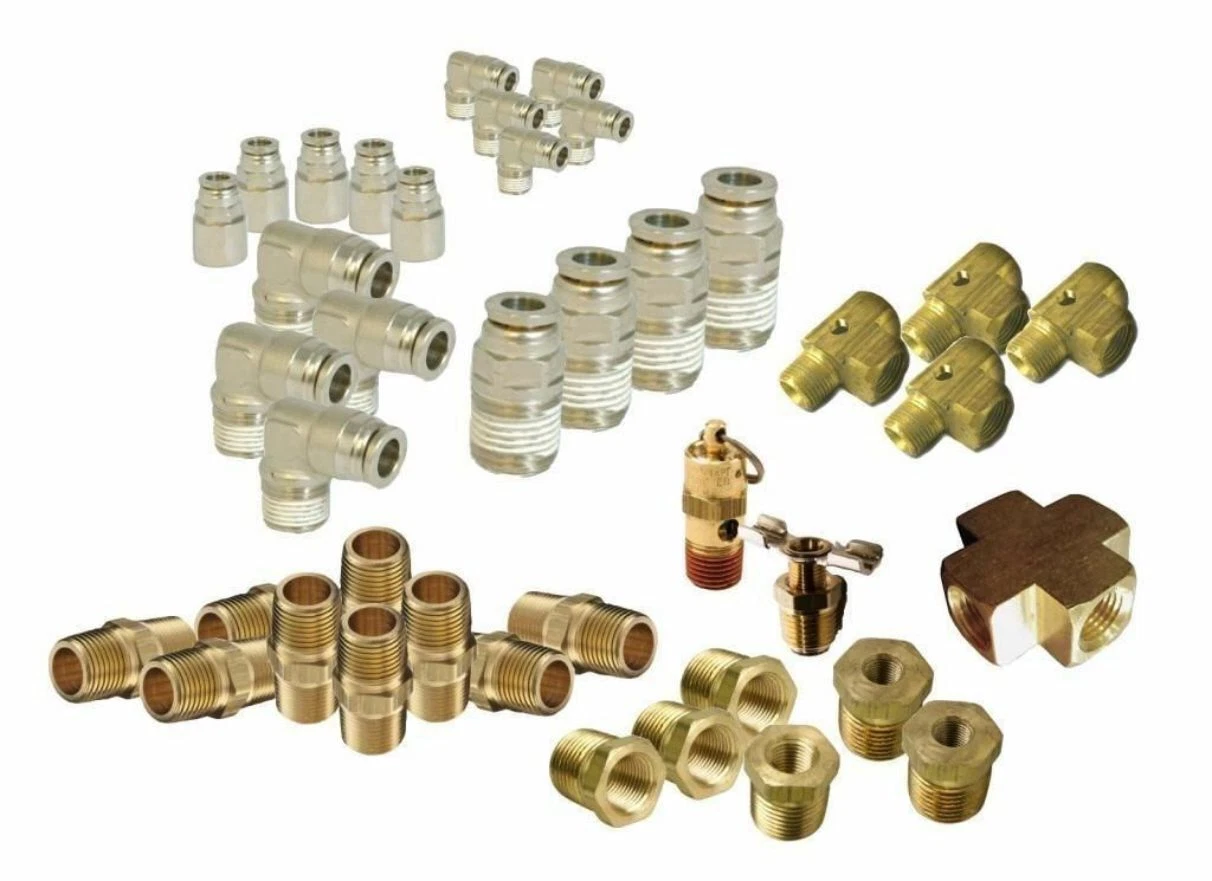

| Fittings | Complete set |

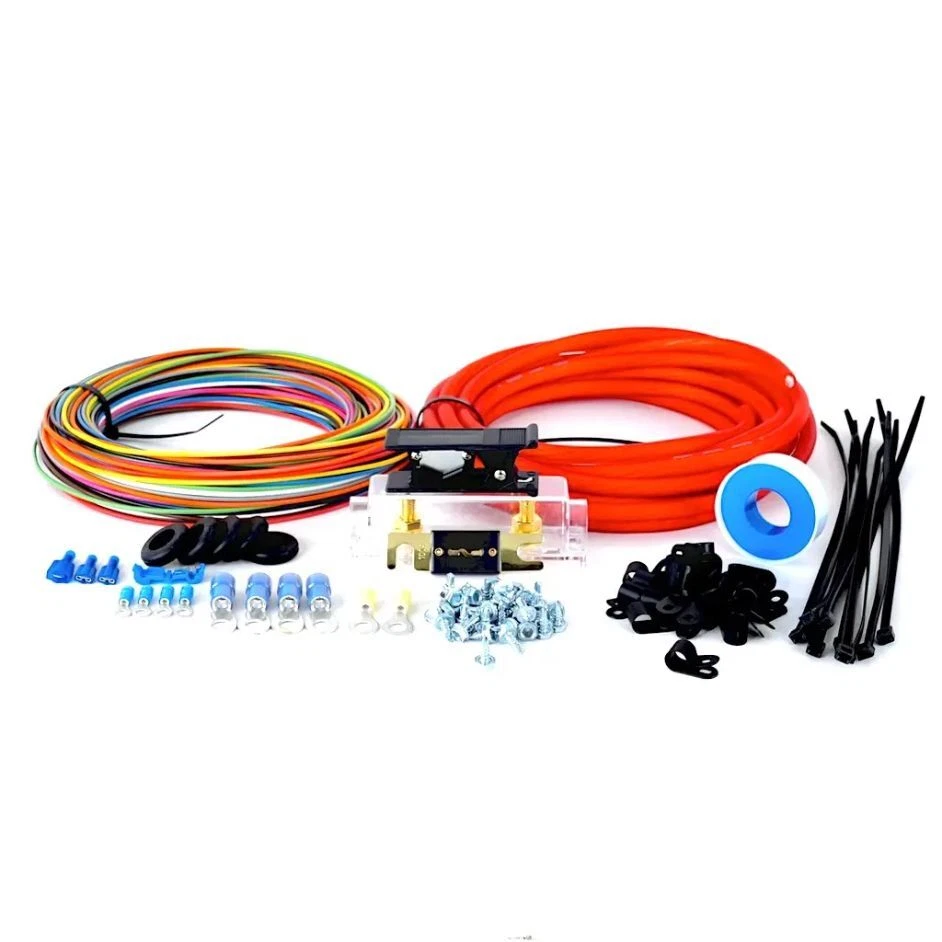

| Installation supplies | Wiring, hardware, Teflon tape, tubing cutter, fuse holder, zip ties, etc. |
| Instructions | Complete installation and wiring/plumbing instructions |

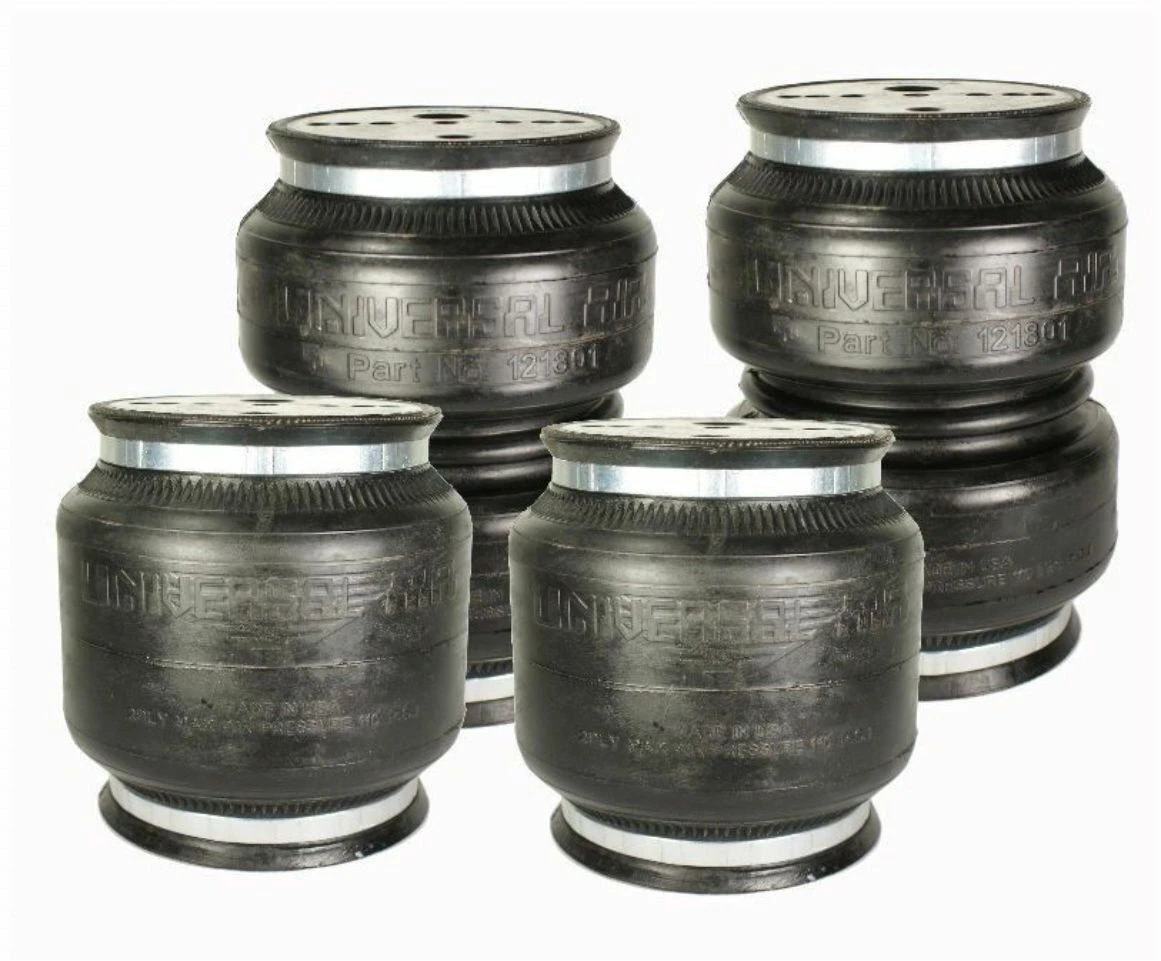

## Air Bag Specifications

| Location | Type | Capacity | Diameter | Collapsed | Extended |
|—|—|—:|—:|—:|—:|
| Front | Single Bellow | 2,600 lb | 5.875″ | 2″ | 8.5″ |
| Rear | Double Bellow | 2,500 lb | 5.875″ | 3.25″ | 11″ |

Port size is **3/8″ or 1/2″ depending on availability**. The seller states that the push-to-connect fittings will be customized to match the supplied bags.

## Air Tank Specifications

| Specification | Details |
|—|—|
| Capacity | 5 gallons |
| Material | Aluminum |
| Finish | Black powder coated |
| Ports | 7 |
| Dimensions | 32″ L × 7″ diameter × 8.5″ high |
| End-cap ports | 2 × 3/8″ NPT |
| Body ports | 4 × 3/8″ NPT |
| Drain | 1 × 1/4″ NPT |

## Installation Requirements

– **Rear lower axle pads require welding.**
– Front shock relocators are **weld-on type**.
– The kit includes installation instructions, compressor/valve wiring diagrams, plumbing information, and fittings.
– This is a complete custom air-suspension setup rather than a simple bolt-on spring replacement.

## Important Notes

– Actual bag brackets may differ from the pictures.
– Front/rear air-bag port size may be **3/8″ or 1/2″** depending on availability.
– Air gauges may have **black or white faces**.
– AVS controller may be **black or clear**.
– The seller states these cosmetic/configuration variations are based on availability.

## Answer

**This Newmatics LIN92-97-TOWN-ANA12VFBSS-KIT is a complete adjustable air-suspension system for 1992–1997 Lincoln Town Car models.**

It provides **front, rear, and side-to-side (FBSS) air control**, using two Viair 444C compressors, a 5-gallon aluminum tank, eight electrically controlled valves, an AVS 9-switch controller, front/rear air bags, brackets, shock relocators, airlines, fittings, gauges, wiring, and installation hardware.

The front bags are rated at **2,600 lb each**, while the rear double-bellow bags are rated at **2,500 lb each**.

**Most important installation point:** this kit is **not completely bolt-on**. The rear lower axle pads require **welding**, and the front shock relocators are also weld-on components.

**Bottom line:** For a **1992–1997 Lincoln Town Car**, this is a comprehensive FBSS air-management and air-bag conversion kit intended for adjustable ride height and independent front/rear/side-to-side control. It includes essentially the complete hardware needed for the air system, but professional fabrication/welding capability is required for installation.
