ITEM SPECIFICS
Condition: New
Brand: RX
Type: Turbo Kit
Manufacturer Warranty: 1 Year
Color: Silver
Items Included: Clamps
Manufacturer Part Number: 00000034223mazda3focus
Features: Individual
Country of Origin: United States
PRODUCT DESCRIPTION
RX Racing Ford Focus / Mazda 3 / Mazda 5 / Mazda 6 / Mazda CX-7
“Street Demon” Series 485HP Turbo Package
Application: Ford/Mazda 2.0L and 2.3L engines
The turbo package includes new components designed for high-performance applications. The package is claimed to support over 485 HP at 25+ PSI with appropriate supporting modifications and a built motor.
On a stock motor, the kit is claimed to provide approximately 50-100 HP gain at 8 PSI.
Compatible with automatic or manual transmissions. The kit may allow retention of air conditioning and power steering depending on the application.

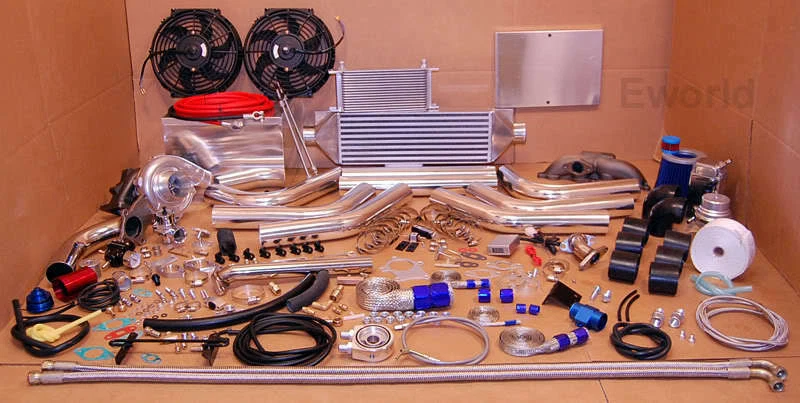

KIT CONTENTS
(1) HYBRID TURBOCHARGER
Compressor Wheel Trim: .57
Compressor Inlet: 3″
Compressor Outlet: 2″
Compressor A/R: .50
Turbine A/R: .63
Oil Inlet: 1/8 NPT
Turbo Type: T3/T4 Hybrid
Bearing: Wet Float
Balancing: Properly Balanced
Claimed Power Capability: 450+ HP
Oil Fitting Gaskets: Included
Mounting Studs: Included
(1) TURBO EXHAUST MANIFOLD
Construction: Cast
Design: High-Flow Large Primaries
Flange: T3 Turbocharger Flange
Design: Fully Ported and Polished
Construction: Extra-Thick Flange Support
Application: Street Performance
(1) FRONT-MOUNT INTERCOOLER
Material: Lightweight Aluminum
Construction: TIG Welded
Core: Extra Thick
Hot Inlet: 2.5″
Cold Outlet: 2.5″
Pressure Drop: Less Than 2%
Purpose: Efficient Turbocharged Air Cooling
(1) UNIVERSAL INTERCOOLER PIPING KIT
Material: Lightweight Aluminum
Pipe Diameter: 2.5″
Modification: May Require Light Modification
Included:
16 Stainless Steel Worm Gear Clamps
2 x 2.5″ 90-Degree Silicone Couplers
6 x 2.5″ Straight Silicone Couplers
2 x 2.5″ 90-Degree Bends
2 x 2.5″ 60-Degree Bends
2 x 2.5″ 45-Degree Bends
2 x 2.5″ Straight Pipes
(1) TURBO OIL LINE INSTALL PACKAGE
18″ 5/8″ High-Temperature 550 PSI Oil Return Line
77″ Straight High-Strength Oil Feed Line
36″ Angled Oil Feed Line
T-Fitting for Engine Block
Factory Oil Pressure Sending Unit Compatibility
Turbo Oil Feed Fittings
Turbo Oil Drain Components
Premium Gaskets
Installation Hardware
Clamps
(1) ALUMINUM BATTERY BOX RELOCATION KIT
Construction: Aluminum
Includes: Relocation Cables, Straps and Hardware
Purpose: Frees Engine Bay Space
Benefit: Improved Weight Distribution
(1) BOOST CONTROLLER
Adjustable Boost Pressure
On-the-Fly Boost Adjustment
Precision Click Adjustment
CNC Machined Construction
Anodized Aluminum Finish
Installation Kit Included
(1) BLOW-OFF VALVE
Purpose: Vents Boost Pressure During Shifting or Throttle Reduction
Design: Performance
Features: Designed to Prevent Boost Leaks
Flanges: Included
Installation Kit: Included
(2) SLIM COOLING FANS
Applications:
A/C Condenser
Oil Cooler
Transmission Cooler
Intercooler
A2W Radiator
Design: Slim
Function: Push/Pull Reversible
Mounting Tabs: Included
Blade Design: Curved
Outside Perimeter: 1.25″
Inside Perimeter: 2.50″
(1) ELECTRONIC TURBO TIMER
Purpose: Turbo Cool-Down Management
Display: LED Digital
Features:
Automatic Mode
Adjustable Cool-Down Period
Pigtail Wiring
Additional Wiring
In-Vehicle Controls
Purpose: Helps reduce premature turbo wear caused by excessive heat and oil coking.
(1) FUEL PRESSURE REGULATOR
Adjustable Fuel Pressure
Precision Pressure Gauge
Complete Installation Kit Included
Application: Boosted Engines
(1) CATCH CAN
Purpose: Removes Oil Vapors from Breather Line
Helps Prevent Excess Oil From Entering Intake Manifold
Includes Installation Kit
Finish: Polished
(1) BILLET ALUMINUM HIGH-FLOW FUEL FILTER
Material: T6-6061 Billet Aluminum
High-Flow Design
High-Pressure Fuel Fittings
Fittings: 6AN
Removable/Cleanable Filter
Mounting Brackets
Anodized Finish
(1) 35MM WASTEGATE
Size: 35mm
Purpose: Prevents Turbo Overboost
Construction: High-Strength
Flange: 2-Bolt
Includes: Gaskets, Flanges and Installation Hardware
(1) 10-METER HEAT WRAP
Material: High-Temperature Fiberglass
Purpose:
Retains Exhaust Heat
Reduces Compressor Inlet Heat
Controls Engine Bay Temperature
Helps Maintain Cooler Intercooler Air
(1) STAINLESS STEEL DOWNPIPE
Inlet Diameter: 2.5″
Flange: Waterjet-Cut 5-Bolt
Construction: Mandrel-Bent Stainless Steel
Welding: TIG Welded
(1) RADIATOR HOSE SLEEVING KIT
Material: Stainless Steel Braiding
Purpose: Reinforces Rubber Radiator Hoses
Construction: High Strength
Ends: Anodized
(1) HIGH-FLOW INTAKE FILTER
Inlet Diameter: 3″
High-Flow Design
Purpose: Protects Turbocharger From Debris
Application: Turbocharger Intake
(1) HIGH-FLOW BREATHER CAP
High-Flow Design
Purpose: Crankcase Ventilation
Designed to Work With Catch Can
Helps Reduce Oil Contamination in Turbo Piping
(1) WASTEGATE POSITIONING ADAPTER
Laser-Cut Flanges
Mandrel-Bent Stainless Steel
Adjustable Wastegate Position
Flange: 2-Bolt
Construction: TIG Welded
(1) WASTEGATE DUMP TUBE
Purpose: Routes Wastegate Exhaust Gases
Laser-Cut Flanges
Mandrel-Bent Stainless Steel
Flange: 2-Bolt
Construction: TIG Welded
(1) COOLANT SENSOR BUNG
Purpose: Coolant Temperature Sensor Relocation
Material: Aluminum
Hose Compatibility: 38mm
Includes: 2 Installation Clamps
Application: Aftermarket Coolant Temperature Sensor
PERFORMANCE CLAIMS
Turbocharger: T3/T4 Hybrid
Claimed Turbo Capability: 450+ HP
Claimed Complete Kit Capability: 485+ HP
Claimed Maximum Boost: 25+ PSI
Claimed Stock Engine Gain: 50-100 HP at 8 PSI
Engine Applications: Ford/Mazda 2.0L and 2.3L
NOTE: The horsepower and boost figures are seller claims and may require a properly built engine, fuel system, tuning, cooling, and other supporting modifications.
NOTE: No marketplace-specific references or seller promotional content have been included.
