For BAL 225008 RV Slide Out Gear Box and High Output Motor 13 tooth Sprocket

Product Specifications
Specification Details
Condition New
Part Type 225008 Motor & Gear Housing
Brand Unbranded
Manufacturer Part Number LK-225008
Warranty 1 Year
Package Includes Slide-Out Gear Box and Motor
Application BAL Accu-Slide Cable Slide-Out System
Vehicle/Application RVs and Trailers
System Type Accu-Slide Cable-Driven Room System
Voltage 12 V
Current 15 A
Motor Speed 12 RPM
Motor Type PMDC / High-Output Electric Motor
Shaft Type Single Output
Shaft Size 3/16 in
Gearbox Sprocket 13-Tooth
Gearbox Replacement Part No. R25076 / R25076-1
Motor Replacement Part No. R25075
Installation Direct replacement; mounting bracket and installation manual included
Description

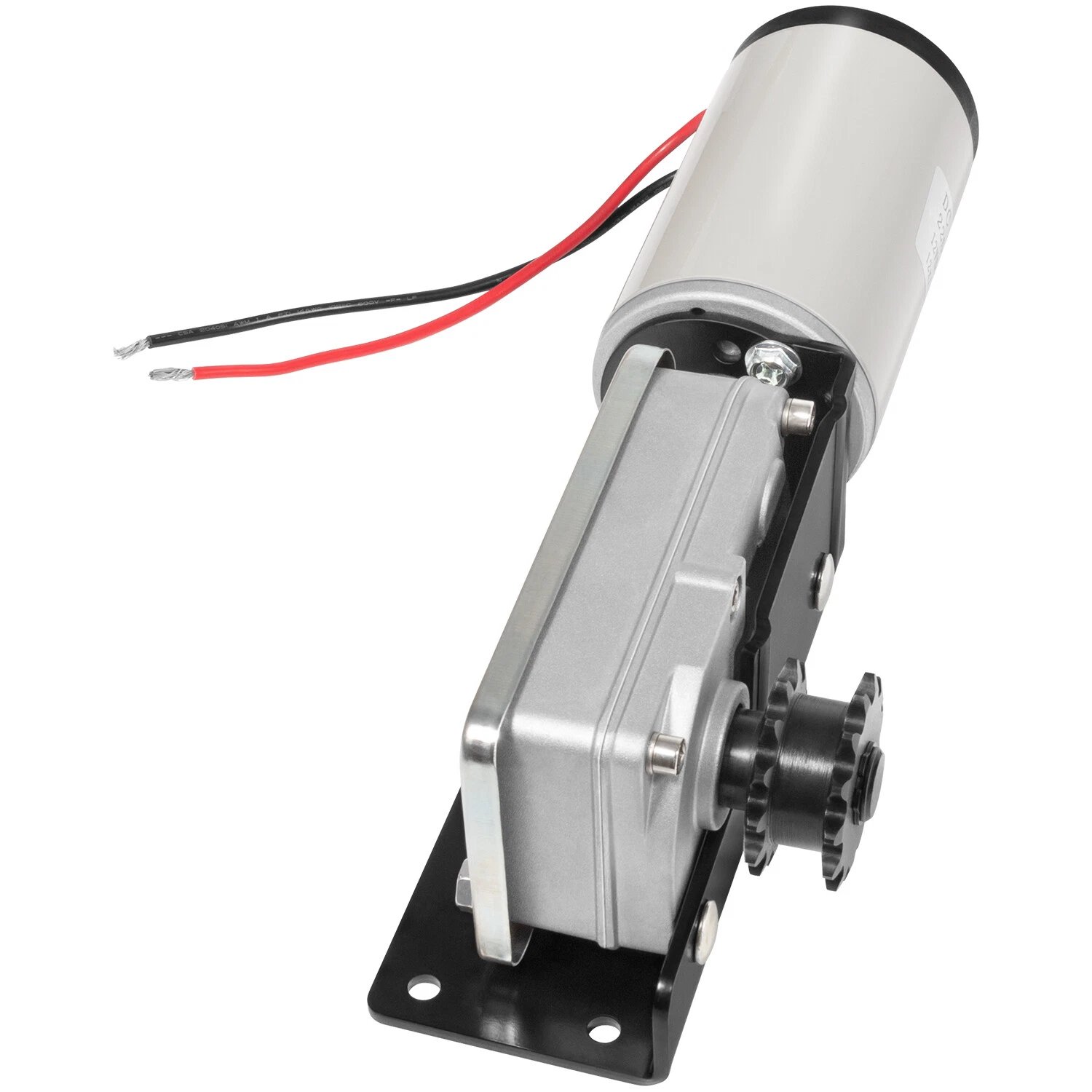

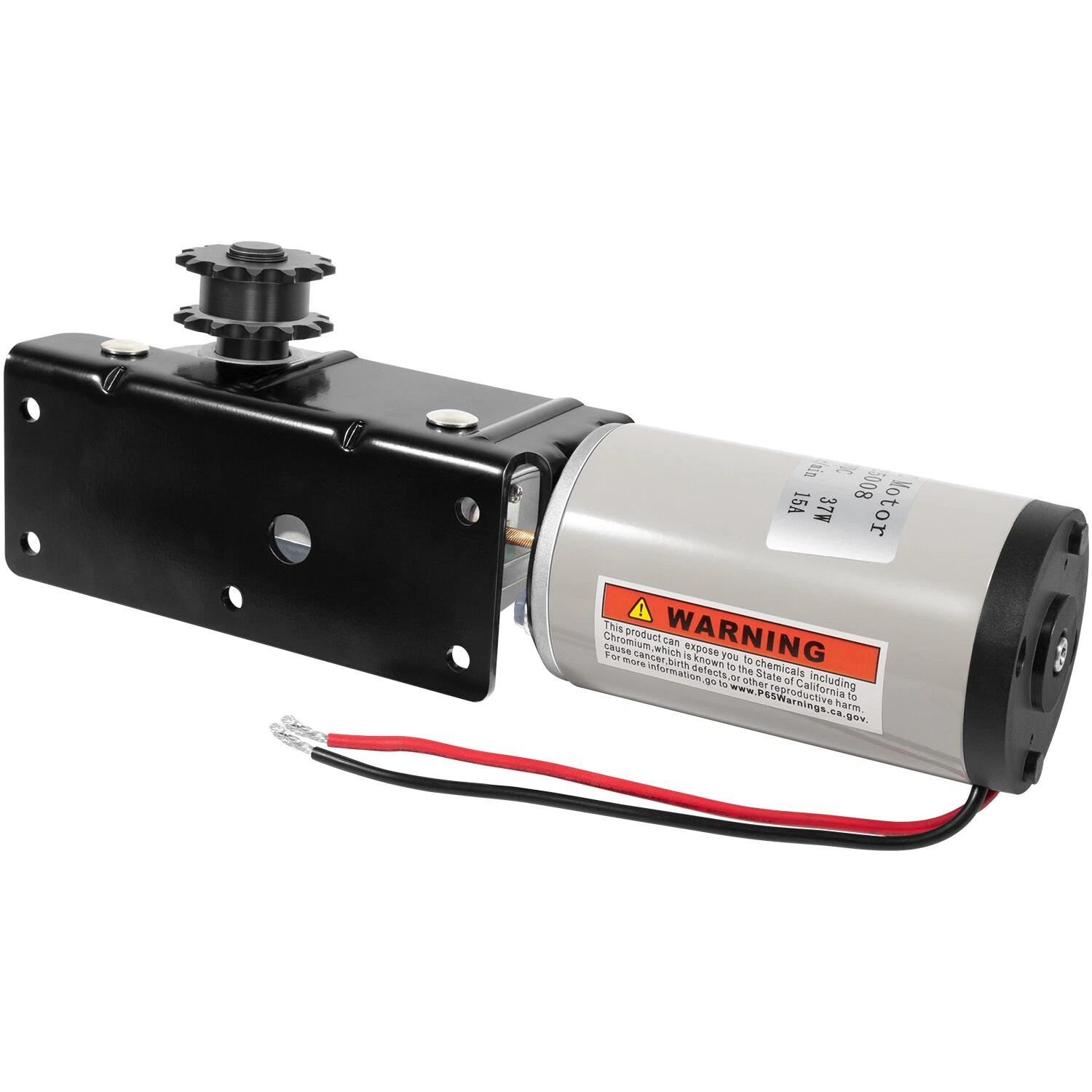

This is a 225008 motor and gear housing replacement designed for the BAL Accu-Slide Cable Slide-Out System. It is intended for RVs and trailers using the Accu-Slide cable-driven room system.

The package contains the motor and gearbox. The unit uses a 12-volt, 15-amp, 12-RPM high-torque motor with a single-output 3/16-inch shaft and 13-tooth sprocket.

Note: Verify that your existing system uses the BAL Accu-Slide system and that the replacement numbers R25076/R25076-1 (gearbox) and R25075 (motor) match your application before ordering.
