ITEM SPECIFICS
Condition: New
Brand: Unbranded
Type: Turbocharger / Turbo Kit
Model: T3 T04E
OE/OEM Part Number: Universal Turbo
Interchange Part Number: T3 T04E
Manufacturer Part Number: SNBQ1T
Manufacturer Warranty: 2 Years
Features: Individual
Performance Part: Yes
Universal Fitment: Yes
Modified Item: Yes
Finish: Painted
Cooling Type: Oil Cooled
Bearing Type: Floating / Journal Bearing
Thrust Bearings: 270 Degrees
Turbo Type: T3/T4 Hybrid
Turbine A/R: 0.63
Compressor A/R: 0.50
Turbine Trim: 74.2
Compressor Trim: 48.1
Turbine Inducer / Exducer: 64.8mm / 55.8mm
Compressor Inducer / Exducer: 52.7mm / 76mm
Horsepower: Up to 420 HP
Boost Pressure: 7.3 PSI – 14.5 PSI (0.5-1 bar)
Exhaust Inlet Flange: T3/T4 4-Bolt Flange
Exhaust Outlet Flange: V-Band, 2.5″ ID / 3.1″ OD
Wastegate: Internal Wastegate
Oil Feed Line: 1000mm Length / 14mm Inner Diameter
Oil Return Line: 550mm Length / 21mm Inner Diameter
Oil Inlet: M12 x 1.25 & 2 x M8 x 1.25
Oil Outlet: 2 x M8 x 1.25
Fitment: Universal for 4 or 6-cylinder 1.5L-2.5L engines

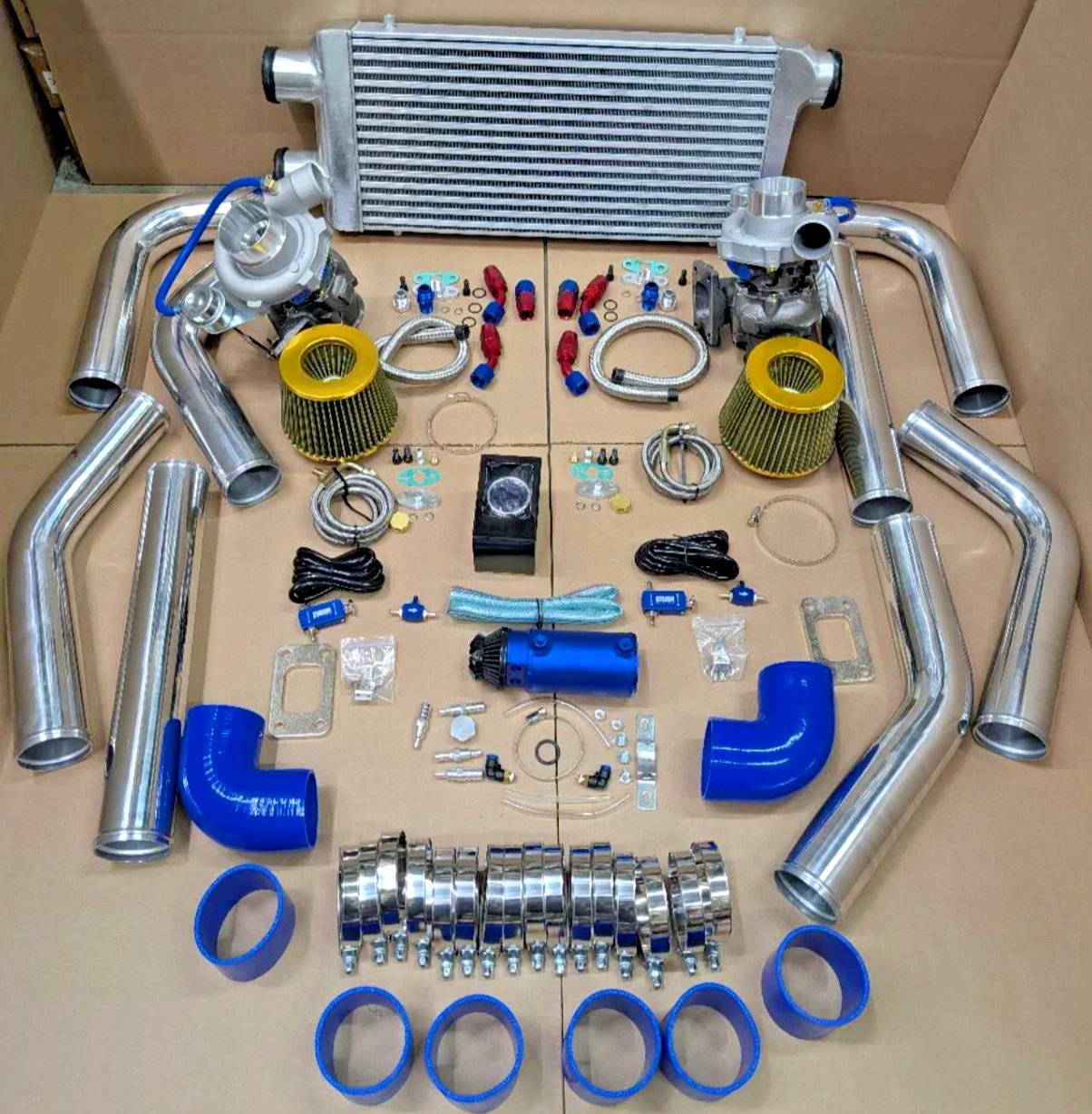

TURBOCHARGERS
Quantity: 2
Type: T3/T4 Hybrid Turbocharger
Bearing: Journal Bearing
Cooling: Oil Cooled
Wastegate: Internal
Thrust Bearing: 270 Degrees
Exhaust Inlet: T3/T4 4-Bolt
Exhaust Outlet: V-Band
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Compressor Trim: 48.1
Compressor A/R: 0.50
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Claimed Horsepower: Up to 420 HP
Internal Wastegate Setting: 8 PSI
INTERCOOLER
Quantity: 1
Material: T6061 Aluminum
Design: Tube and Fin
Type: Front Mount
Size: 32.5″ L x 11.75″ H x 3″ W
Core Size: 23.5″ L x 11.5″ H x 2.75″ W
Inlet/Outlet: 3″
Design: Dual Inlet / Single Outlet
Maximum Claimed Pressure: 80 PSI
PIPING KIT
Material: T6061 Lightweight Aluminum
Diameter: 2.5″
Wall Thickness: 2.0mm
Finish: Powder Coated
Type: Universal
Fitment: Piping may require modification for installation
SILICONE COUPLERS
Material: Reinforced Silicone
Wall Thickness: 5mm
Construction: 4-Ply Reinforced
Working Pressure: 43.5-130.5 PSI
Burst Pressure: 2 MPa
Working Temperature: -76°F to +500°F
T-BOLT CLAMPS
Material: 301 Stainless Steel
Finish: Polished
Quantity: Included
Purpose: Secure piping and provide uniform sealing pressure
AIR FILTERS
Quantity: 2
Type: Washable Micro Cotton Gauze
Material: Oil-Free Filter Media
Filtration Efficiency: Up to 95%
Inlet Size: 3″
Width: 6″
Overall Height: 3.5″
Mesh Height: 2.5″
Reusable: Yes
BLOW-OFF VALVE
Quantity: 1
Design: JDM Racing Style
Discharge Ports: 8
Valve Size: 40mm
Valve Finish: Hard Anodized
Spring Design: Dual Spring
Maximum Claimed Boost: 30 PSI
OIL LINE KIT
Quantity: 2 Oil Line Sets
Oil Drain/Feed Lines: Included
Fittings: 10AN
Oil Line Inner Diameter: 0.50″
Oil Line Length: 17″
Additional Line Inner Diameter: 0.25″
Additional Line Length: 36″
Fittings: 1/8 NPT
Turbo Adapter Plate: CNC Machined
Oil Pan Fitting: Weldable 10AN
Additional Hardware: Brass fitting block and port cover included
BOOST CONTROLLERS
Quantity: 2
Type: Manual Boost Controller
Adjustment Range: 1-30 PSI
Maximum Capacity: 30 PSI
Construction: CNC Machined
Features: Adjustable boost pressure without changing wastegate springs
Hardware: Hose clamps and installation hardware included
WASTEGATES
Quantity: 2
Material: Alloy Aluminum Body with Steel Head
Spring: 7 PSI Installed
Purpose: Prevents turbo system overboosting
Installation Kit: Included
GASKET FLANGE ADAPTERS
Quantity: 2
Material: Cast Raw Steel
Type: T3 Turbo Flange
Design: Single Entry
Thickness: 12mm
Bolt Size: M10
Bolt Holes: Through-Holes, Not Threaded
Compatibility: T3 and T3/T4 Hybrid Turbos
Flange: 4-Bolt / 5-Bolt Standard Size Compatibility
BOOST GAUGE
Quantity: 1
Size: 52mm / 2″
Type: Digital Boost Gauge
Display: LED
Pressure Range: 0-35 PSI
Fitment: Universal
Application: Cars, Trucks, SUVs and other compatible vehicles
Face Design: Smoked
Installation Kit: Included
Features: Real-time boost pressure monitoring
INSTALLATION NOTES
No installation instructions included.
Professional turbo installation is recommended.
Universal piping may require modification to fit the vehicle.
Professional installation is recommended to avoid installation-related damage.
Color may vary depending on inventory.
For emissions-related applications, check local emissions requirements before purchasing.
